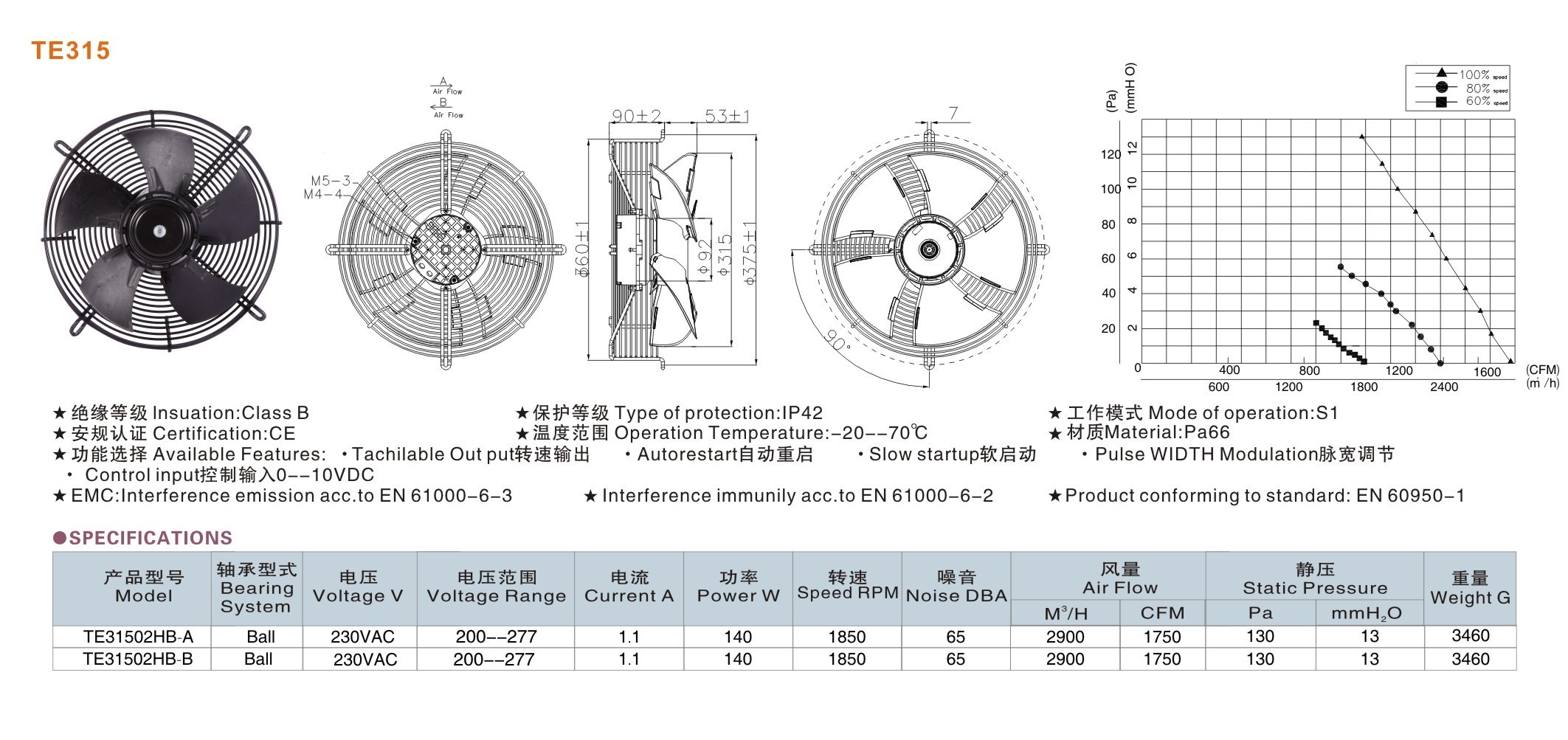

Product Description
★绝缘等级Insuation:Class B
★保护等级Type of protection:lP42
★工作模式Mode of operation:S1
★安规认证Certification:CE
★温度范围Operation Temperature:-20--70℃
★材质Material:Pa66
★功能选择Available Features: ·Tachilable Out put转速输出 ·Autorestart自动重启 ·Slow startup软启动 ·Pulse WIDTH Modulation脉宽调节 ·Control input控制输入0--10VDC
★ EMC:Interference emission acc.to EN 61000-6-3
★ Interference immunily acc.to EN 61000-6-2
★Product conforming to standard: EN 60950-1
SPECIFICATIONS
| 产品型号Model | 轴承型式Bearing System | 电压Voltage V | 电压范围Voltage Range | 电流Current A | 功率Power W | 转速Speed RPM | 噪音Noise DBA | 风量Air Flow | 静压Static Pressure | 重量Weight G | ||
| M3/H | CFM | Pa | mmH2O | |||||||||
| TE31502HB-A | Ball | 230VAC | 200--277 | 1.15 | 146.72 | 1850 | 67.55 | 2411 | 1419 | 312 | 31.82 | 3460 |
| TE31502HB-B | Ball | 230VAC | 200--277 | 1.15 | 146.72 | 1850 | 67.55 | 2411 | 1419 | 312 | 31.82 | 3460 |
