Product Description
★绝缘等级Insuation:Class B
★保护等级Type of protection:IP42
★工作模式Mode of operation:S1
★安规认证Certification:CE
★温度范围Operation Temperature:-20--70℃
★材质Material:Pa66
★功能选择Available Features:·Tachilable Out put转速输出 ·Autorestart自动重启 ·Slow startup软启动 ·Pulse WIDTH Modulation脉宽调节 ·Control input控制输入0--10VDC
★ EMC:Interference emission acc.to EN 61000-6-3
★ Interference immunily acc.to EN 610o0-6-2
★Product conforming to standard: EN 60950-1

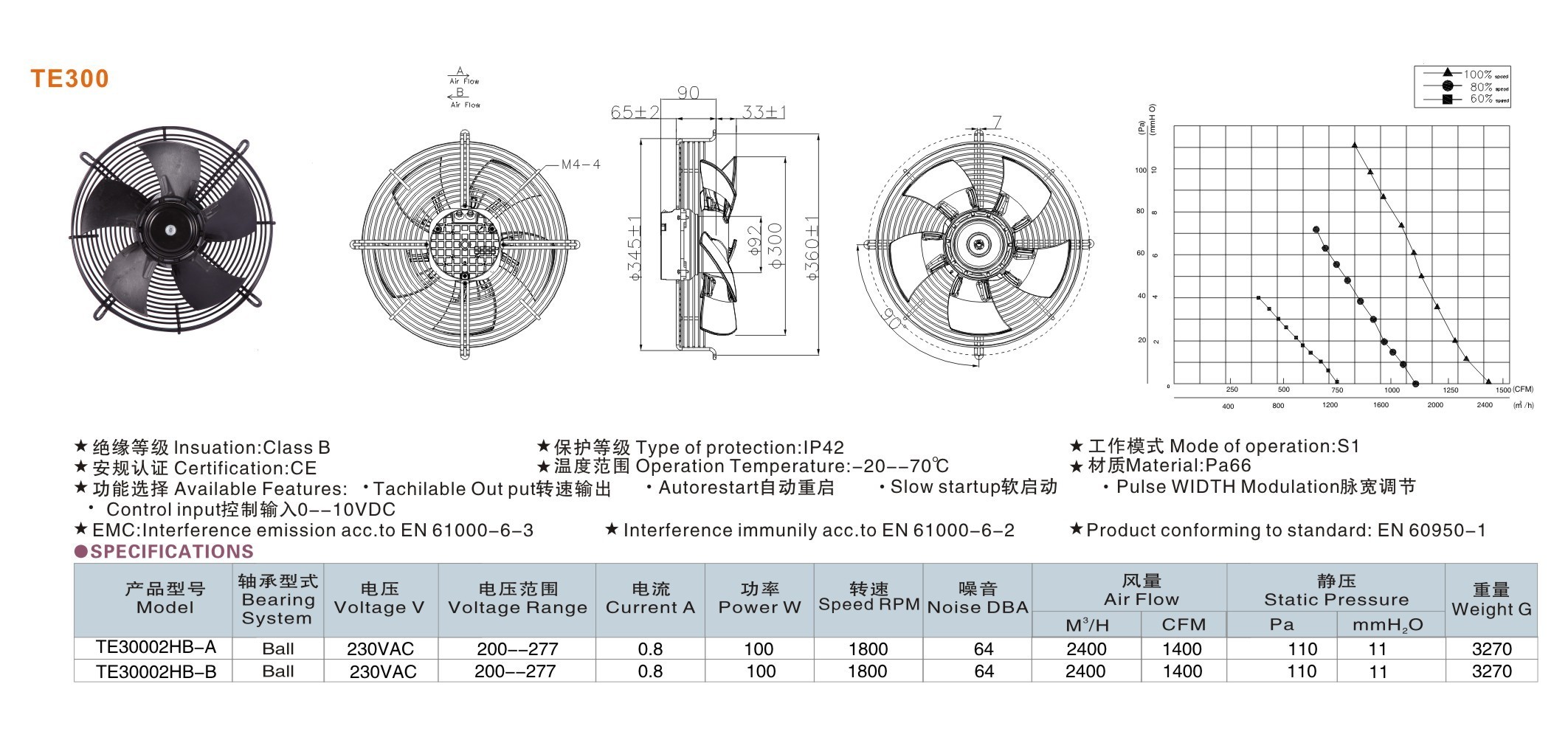

SPECIFICATIONS
| 产品型号 Model |
轴承型式 Bearing System |
电压 Voltage V |
电压范围 Voltage Range |
电流 Current A |
功率 Power W |
转速 Speed RPM |
噪音 Noise DBA |
风量 Air Flow |
静压 Static Pressure |
重量 Weight G |
||
| M3/H | CFM | Pa | mmH2O | |||||||||
| TE30002HB-A | Ball | 230VAC | 200--277 | 0.86 | 137 | 2100 | 61.2 | 2186 | 1302 | 299.4 | 30.5 | 3270 |
| TE30002HB-B | Ball | 230VAC | 200--277 | 0.86 | 137 | 2100 | 61.2 | 2186 | 1302 | 299.4 | 30.5 | 3270 |
