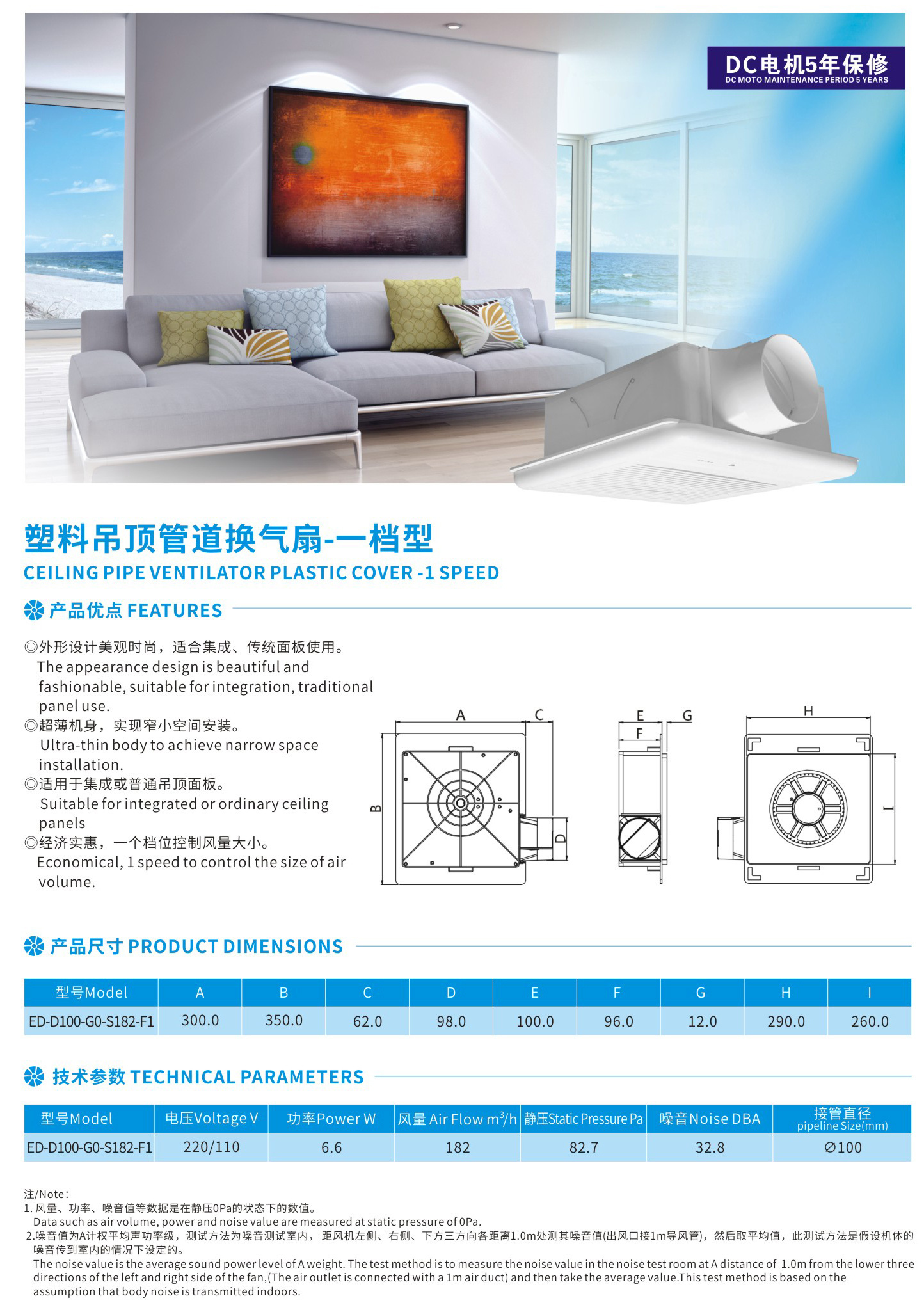

CELING MOUNTED VENTILATION FAN-1 SPEED
Outline：
Classification：
Ventilation Fan
Product Description
Features
- The appearance design is beautiful and fashionable, suitable for integrated and traditional panel use.
- Ultra-thin body to achieve narrow space installation.
- Suitable for integrated or ordinary ceiling panels.
- Economical, 1 speed to control the size of air volume.
PRODUCT DIMENSIONS
| Model | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| ED-D100-G0-S182-F1 | 300.0 | 350.0 | 62.0 | 98.0 | 100.0 | 96.0 | 12.0 | 290.0 | 260.0 |
TECHNICAL PARAMETERS
| Model | Voltage (V) | Power (W) | Air Flow (m³/h) | Static Pressure (Pa) | Noise (dBA) | Pipeline Size (mm) |
|---|---|---|---|---|---|---|
| ED-D100-G0-S182-F1 | 220/110 | 6.6 | 182 | 82.7 | 32.8 | Ø100 |
Note
- 1. Data such as air volume, power and noise value are measured at a static pressure of 0Pa.
- 2. The noise value is the average sound power level of A-weight. The test method is to measure the noise value in the noise test room at a distance of 1.0m from the left, right and lower directions of the fan (the air outlet is connected with a 1m air duct), and then take the average value. This test method is based on the assumption that body noise is transmitted indoors.
