PRODUCTS CENTER

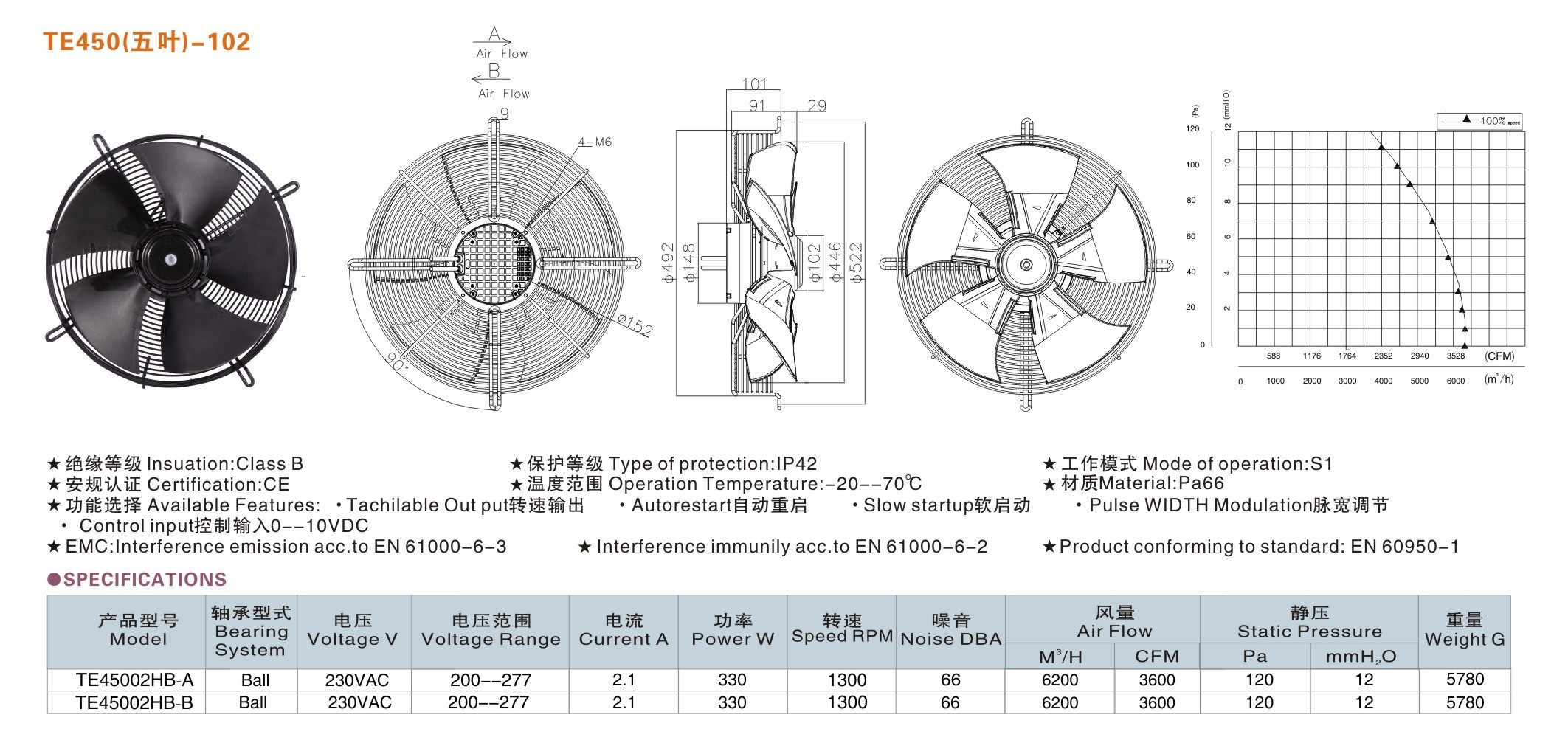

Product Description
★绝缘等级Insuation:Class B
★保护等级Type of protection:IP42
★工作模式 Mode of operation:S1
★安规认证Certification:CE
★温度范围Operation Temperature:-20--70℃
★材质Material:Pa66
★功能选择AvailableFeatures:·Tachilable Out put转速输出 ·Autorestart自动重启 ·Slow startup软启动 ·Pulse WIDTH Modulation脉宽调节 ·Control input控制输入0--10VDC
★ EMC:Interference emission acc.to EN 61000-6-3
★ Interference immunily acc.to EN 610oo-6-2
★ Product conforming to standard: EN 60950-1
SPECIFICATIONS
| 产品型号Model | 轴承型式Bearing System | 电压Voltage V | 电压范围Voltage Range | 电流Current A | 功率Power W | 转速Speed RPM | 噪音Noise DBA | 风量Air Flow | 静压Static Pressure | 重量Weight G | ||
| M3/H | CFM | Pa | mmH2O | |||||||||
| TE45002HB-A | Ball | 230VAC | 200--277 | 1.62 | 342.4 | 1300 | 70.84 | 4930 | 2902 | 246 | 25.09 | 5780 |
| TE45002HB-B | Ball | 230VAC | 200--277 | 1.62 | 342.4 | 1300 | 70.84 | 4930 | 2902 | 246 | 25.09 | 5780 |
key word：
