Product Description
★绝缘等级Insuation:Class B
★温度范围OperationTemperature:-20-—70℃
★保护等级Type of protection:IP42
★工作模式Mode of operation:S1
★安规认证Certification:CE
★材质Material:Pa66
★功能选择Available Features: ·Tachilable Out put转速输出 ·Autorestart自动重启 ·Slow startup软启动 ·Pulse WIDTH Modulation脉宽调节 ·Control input控制输入0--10vDC
★ EMC:Interference emission acc.to EN 61000-6-3
★ Interference immunily acc.to EN 610o0-6-2

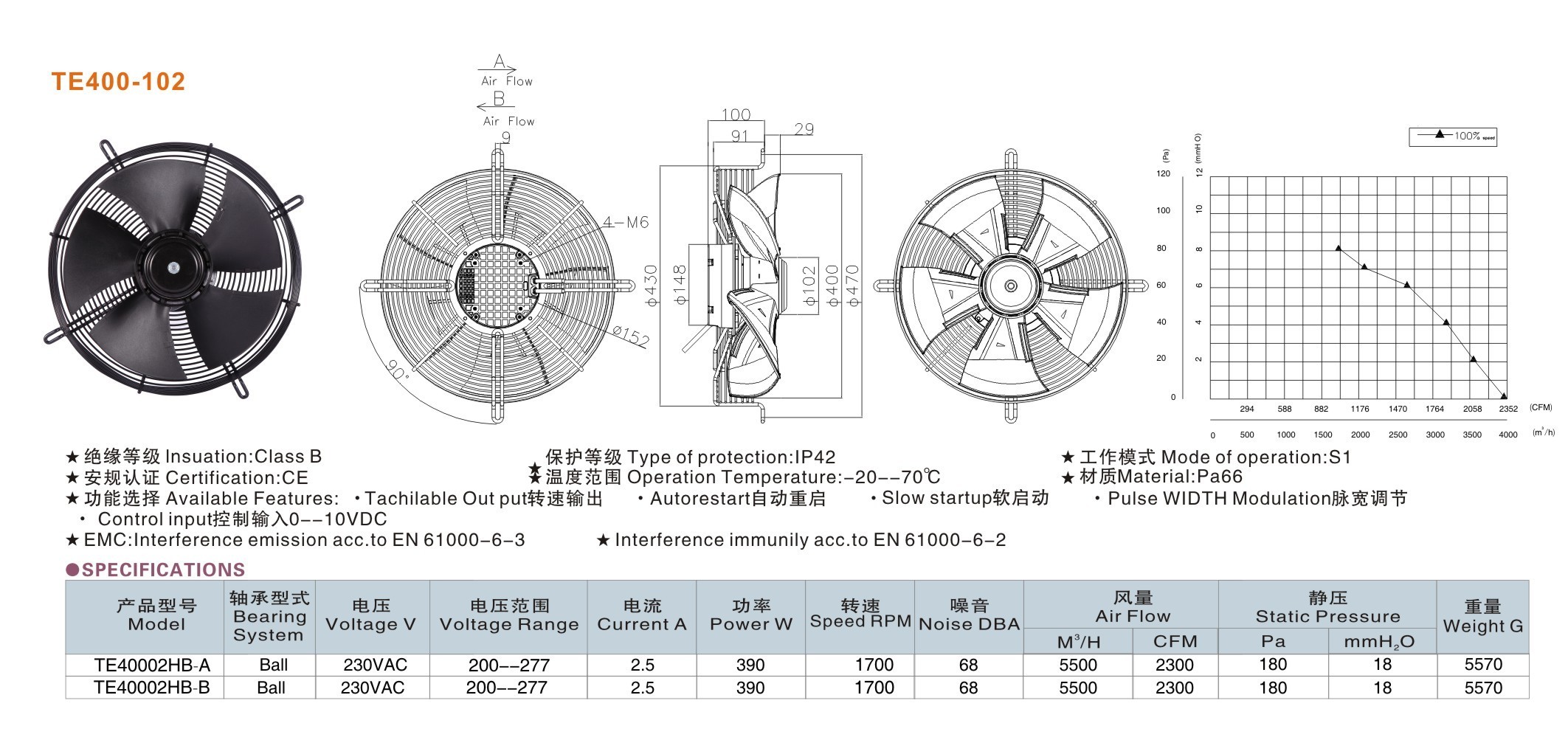

SPECIFICATIONS
| 产品型号 Model |
轴承型式 Bearing System |
电压 Voltage V |
电压范围 Voltage Range |
电流 Current A |
功率 Power W |
转速 Speed RPM |
噪音 Noise DBA |
风量 Air Flow |
静压 Static Pressure |
重量 Weight G |
||
| M3/H | CFM | Pa | mmH2O | |||||||||
| TE40002HB-A | Ball | 230VAC | 200--277 | 2.01 | 443.9 | 1700 | 75.03 | 4942 | 2909 | 363 | 37.03 | 5570 |
| TE40002HB-B | Ball | 230VAC | 200--277 | 2.01 | 443.9 | 1700 | 75.03 | 4942 | 2909 | 363 | 37.03 | 5570 |
