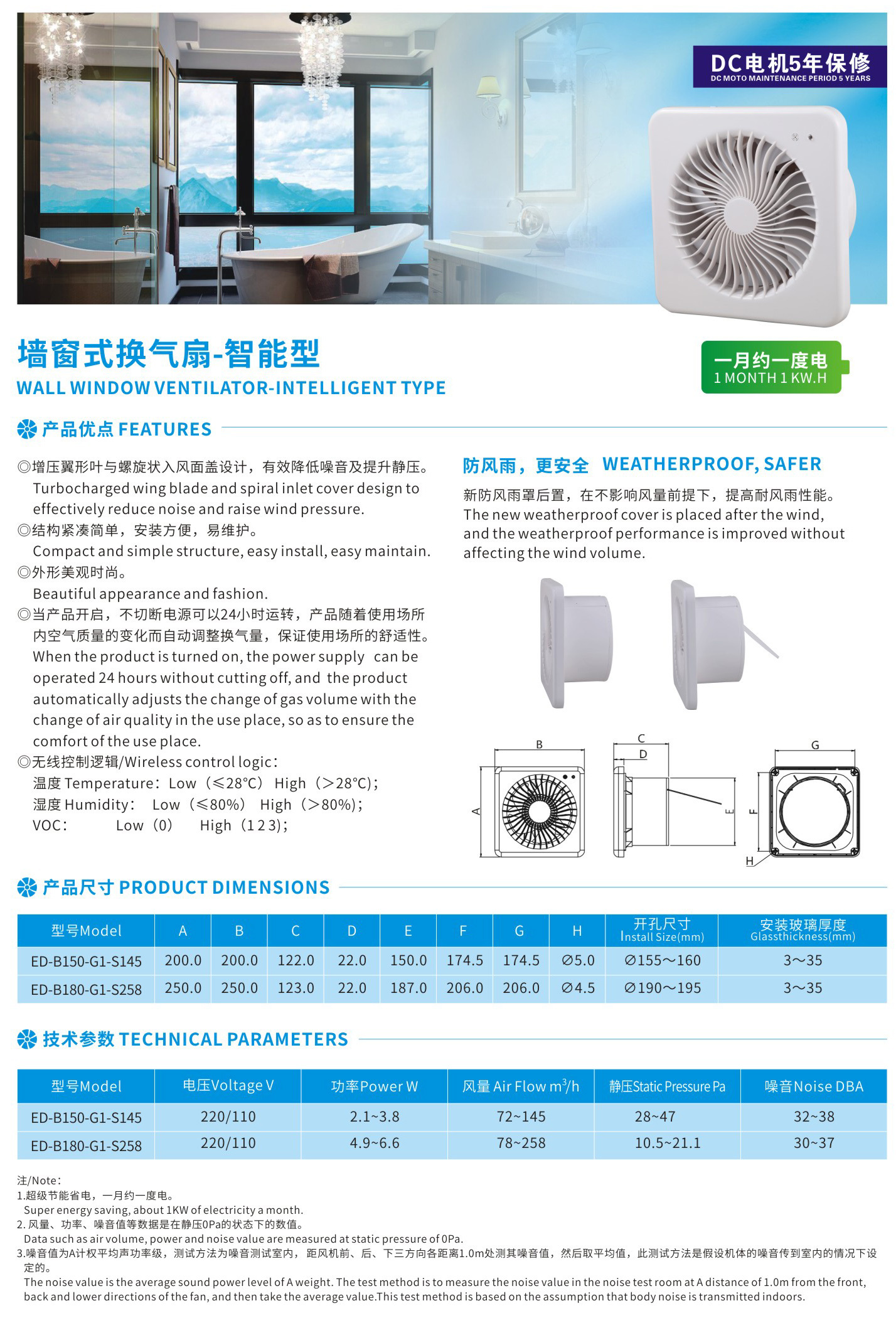

WALL WINDOWVENTILATOR-INTELLIGENT TYPE
Outline：
Classification：
Ventilation Fan
Product Description
Features
- Turbocharged wing blade and spiral inlet cover design to effectively reduce noise and raise wind pressure.
- Compact and simple structure, easy install, easy maintenance.
- Weatherproof, safer: the new weatherproof cover is placed behind the wind, improving weatherproof performance without affecting the wind volume.
- Beautiful appearance and fashion.
- When the product is turned on, it can run 24 hours without cutting off the power supply. The product automatically adjusts the air volume with the change of air quality in the place of use, so as to ensure the comfort of the place of use.
- Wireless control logic: Temperature Low(≤28℃) High(>28℃); Humidity Low(≤80%) High(>80%); VOC Low(0) High(1~3)
PRODUCT DIMENSIONS
| Model | A | B | C | D | E | F | G | H | Opening size (mm) | Install glass thickness (mm) |
| TE-B150-G1-S220 | 200.0 | 200.0 | 136.0 | 18.0 | 148.0 | 174.5 | 174.5 | 5.0 | Ø150~160 | 3~35 |
| TE-B180-G1-S320 | 250.0 | 250.0 | 141.5 | 18.0 | 178.0 | 206.0 | 206.0 | 4.5 | Ø180~190 | 3~35 |
TECHNICAL PARAMETERS
| Model | Voltage (V) | Power (W) | Air Flow (m³/h) | Static Pressure (Pa) | Noise (dBA) |
| TE-B150-G1-S220 | 220/110 | 2.2~3.8 | 165~220 | 22.5~39 | 32~38 |
| TE-B180-G1-S320 | 220/110 | 5.1~6.1 | 220~320 | 37~45 | 30~37 |
Note
- Super energy saving, about 1kW of electricity a month.
- 1. Data such as air volume, power and noise value are measured at a static pressure of 0Pa.
- 2. The noise value is the A-weighted average sound power level. The test method is to measure the noise value in the noise test room at a distance of 1.0m from the front, back and lower directions of the fan, and then take the average value. This test method is based on the assumption that body noise is transmitted indoors.
