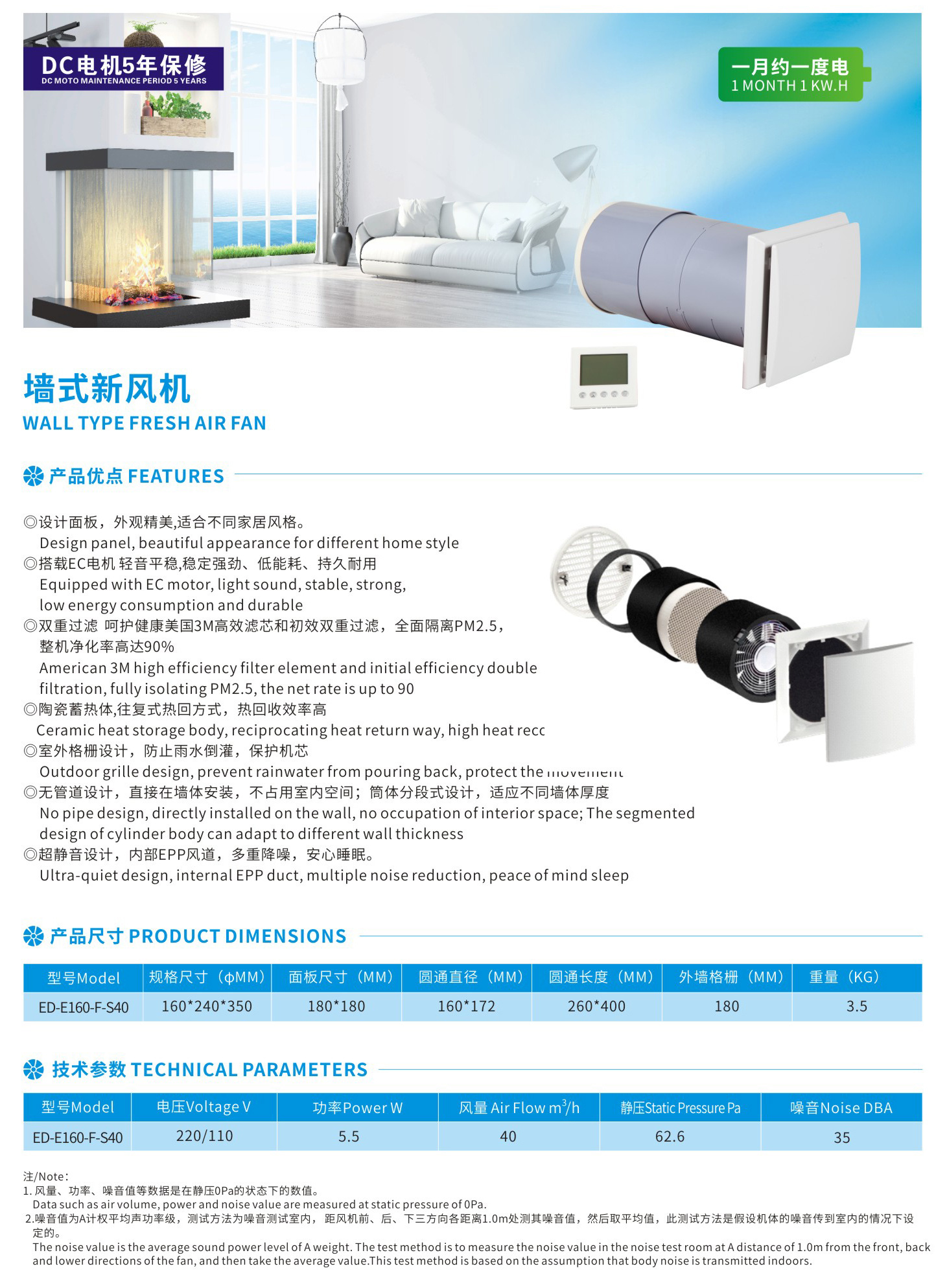

WALL TYPE HEAT EXCHANGE RECUPERATOR
Outline：
Classification：
Ventilation Fan
Product Description
Features
- Design panel with beautiful appearance, suitable for different home styles.
- Equipped with EC motor: light sound, stable, strong, low energy consumption and durable.
- Double filtration for health: American 3M high-efficiency filter element and initial efficiency double filtration, fully isolating PM2.5, with a purification rate of up to 90%.
- Ceramic heat storage body, reciprocating heat recovery way, high heat recovery efficiency.
- Outdoor grille design prevents rainwater from pouring back and protects the movement.
- No-pipe design, directly installed on the wall, no occupation of interior space; the segmented design of the cylinder body can adapt to different wall thicknesses.
- Ultra-quiet design, internal EPP air duct, multiple noise reduction, peaceful sleep.
PRODUCT DIMENSIONS
| Model | 规格尺寸 (φmm) | 面板尺寸 (mm) | 圆筒直径 (mm) | 圆筒长度 (mm) | 外墙格栅 (mm) | 重量 (KG) |
|---|---|---|---|---|---|---|
| ED-E160-F-S40 | 160×240×350 | 180×180 | 160×172 | 260×400 | 180 | 3.5 |
TECHNICAL PARAMETERS
| Model | Voltage (V) | Power (W) | Air Flow (m³/h) | Static Pressure (Pa) | Noise (dBA) |
|---|---|---|---|---|---|
| ED-E160-F-S40 | 220/110 | 5.5 | 40 | 62.6 | 35 |
Note
- 1. Data such as air volume, power and noise value are measured at a static pressure of 0Pa.
- 2. The noise value is the average sound power level of A-weight. The test method is to measure the noise value in the noise test room at a distance of 1.0m from the front, back and lower directions of the fan, and then take the average value. This test method is based on the assumption that body noise is transmitted indoors.
